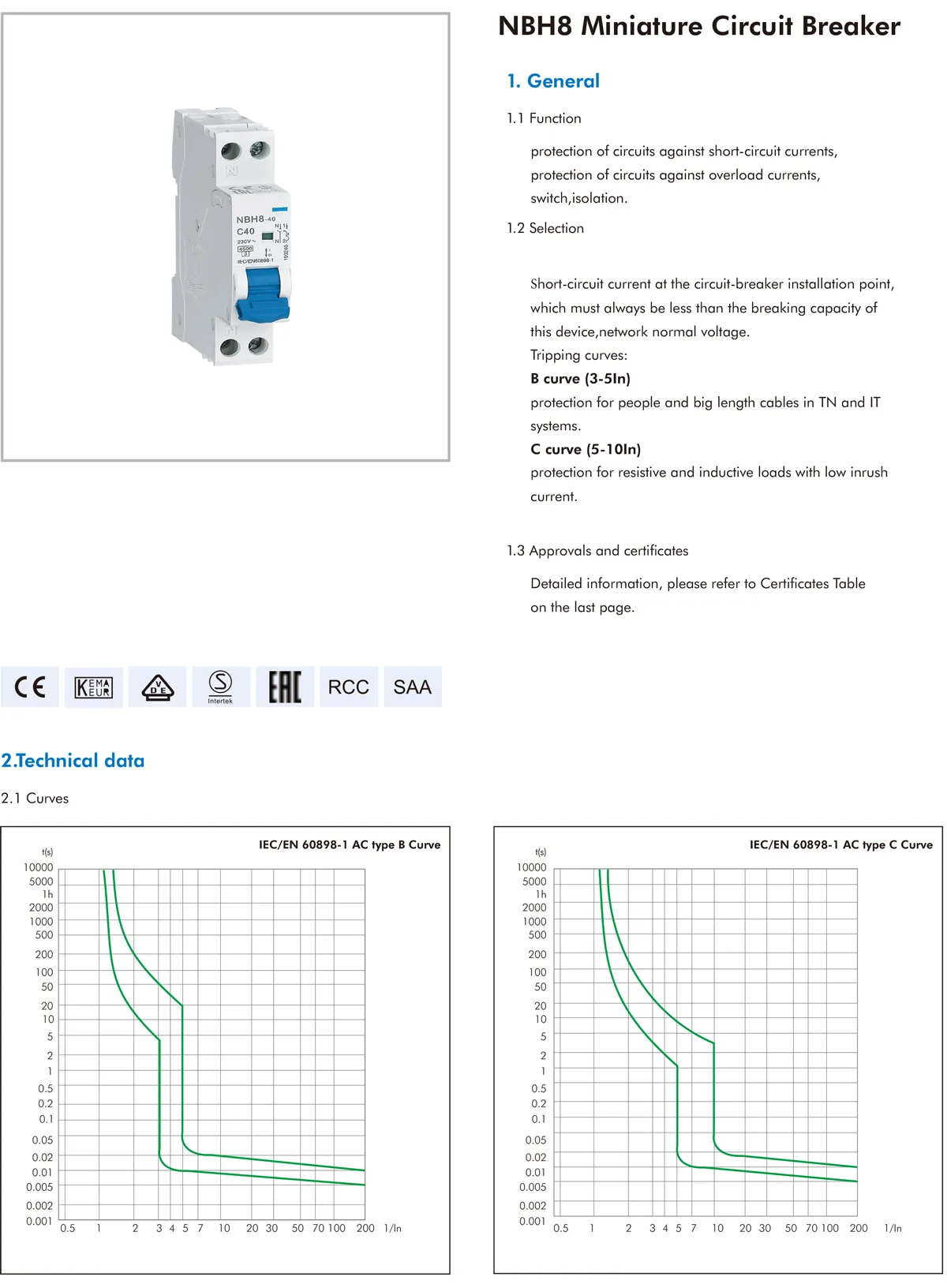

1.1 Function

protection of circuits against short-circuit currents,protection of circuits against overload currents,switch,isolation.

1.2 Selection

short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device,network normal voltage.

Tripping curves:

B curve (3-5In)

protection for people and big length cables in TN and IT systems.

C curve (5-10In)

protection for resistive and inductive loads with low inrush current.

1.3 Approvals and certificates

Detailed information, please refer to Certificates Table on the last page.
