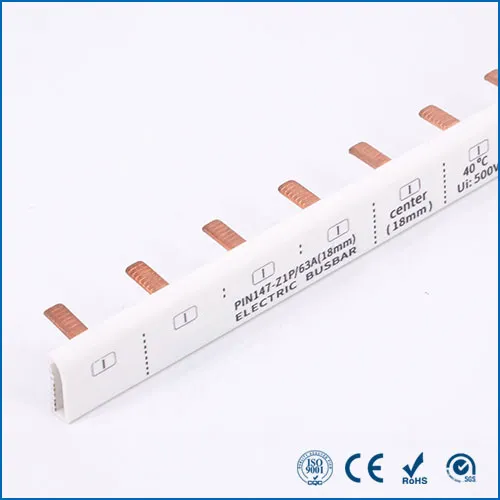

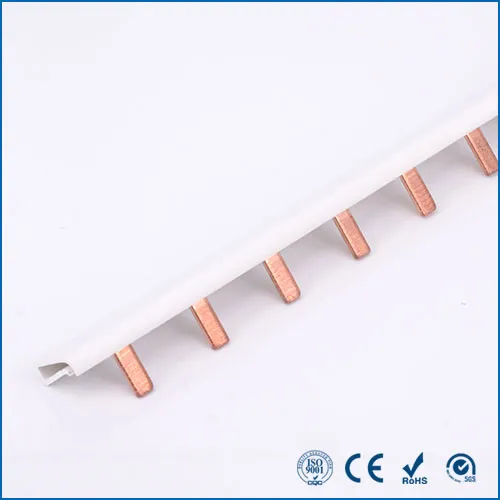

Insulated Pin busbar

The present Busbar changed the outdated connection ways of miniature circuit breaker (MCB) to a new connection way with the characteristics of wider contact area, low power consumption and low temperature-rise.

Product Description

Our company produces almost all kinds of busbars for MCB,which have good versatility and practibility.It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage power box,distribution box,illuminated box and so on.

Specifications

1.CE & ROHS,SGS,ISO9001 Certificated

2.Model:Pin Busbar

3.Busbar:Pin/Fork/U type

4.Universal for MCB

5.Material: Pure copper, fire-resistance PVC

6.Rated Current:40A,50A,63A,80A,100A

7.Rated Voltage: up to 415V

8.Standard length 1M

9. Support OEM & ODM

10. Material of bus bar manufacturing company: copper and pvc

11.Type of comb busbar for distribution board panel: L-101, L-102, L-103, L-104,L-201,L202,L-203,L204

12.Phase/pole:1p,2p,3p,4p

13.No of Pins of bus bar manufacturing company: 54, 56

14.Rated Current (A): 63-100, 63,50,40

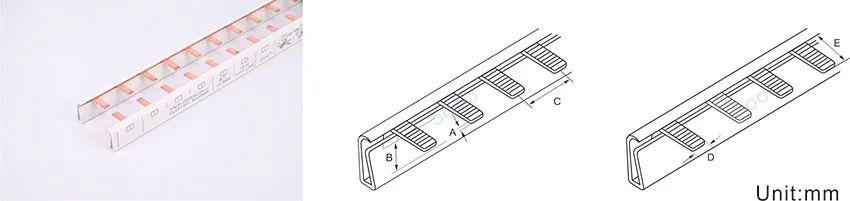

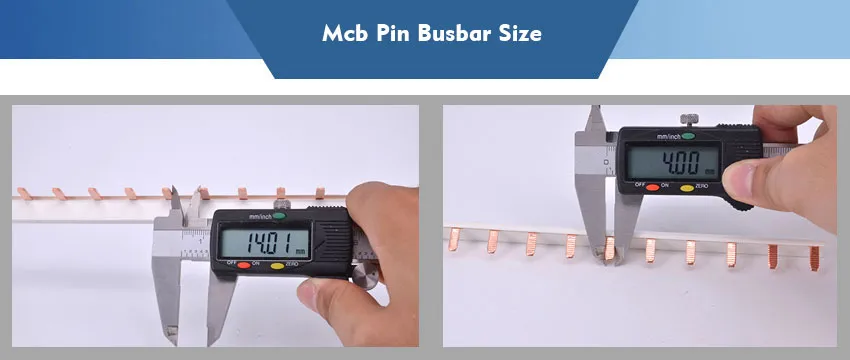

15.Thickness&Height (mm): 1.5&9, 1.5&7, 1.4&7, 1.2&7

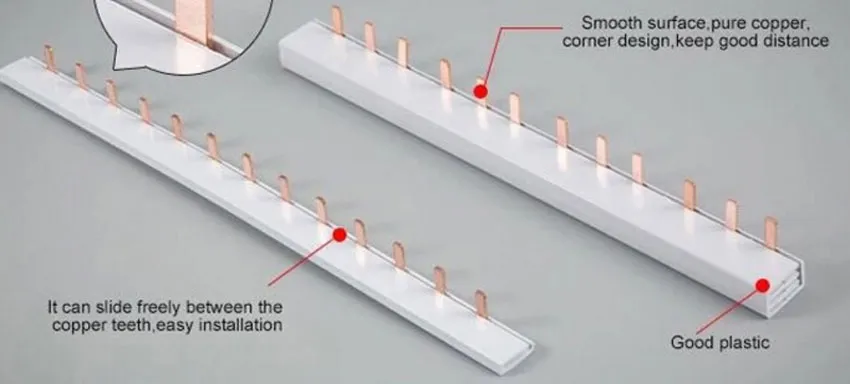

16.Perfect printing on plastic slot, and convenient to cut

Features

Good conductivity

Low contact resistance

Safe and reliable

Comb bus bar manufacturing company

Good versatility and tractability

Advantages and security and convenience to install and widely used in construction electrical devices.

Packaging & Delivery

Packaging Details:5pcs each heat shrink film packing, 50pcs per carton, standard export packing

Delivery Detail:Shipped in 20 days after payment

As one of the trustworthy electrical bus bars manufacturers and suppliers in China, Sodd Electric is dedicated to be a professional cleaner energy and efficient energy developer and supplier. With professional factory supplying you with OEM, SCHNEIDER, ABB and LS electrical bus bars, you can rest assured to wholesale quality products and check the pricelist with us.

Product Description

MCB busbar copper clad aluminum busbar

1.Material is of fire-resistant PVC and redl copper

2. Current rating is up to 125A

3. Rated voltage is up to 415V

4. Applicable ambient temperature -25~+50

5. Standard length 1m, other length tol be made upon request.

6. Good conductivity, low contact resistance, safe and reliable.

The Present of Busbar changed the outdated connection ways of Miniature circuit breaker(MCB) to a new connection way with the characteristics of wider contact area , low power consumption and temperature-rise.

Our company products almost all kinds of busbars for MCB, which have good versatility and practility.

It has advantages of security and convenience to install and widely used in construction electrical devices,such as low-voltage power box ,distribution box,illuminatde box and so on.

Combinated busbar:

The patented combinated busbar get rid of the disadvantage of the old style busbar and has the following virtue.

1.It can be combinated to install directly by ednd user according to any type and quantity of MCBs,thus can avoid the "cut-the busbar" inconvenience when the old style busbar used.

2.It can form the mixed busbar to match different type of MCBs with its different unit directly by end user,whereas it can only specially-made by the manufactory with different mould thus can solve the connection difficulties when the old busbar used.

3.It has the feature of good clima stability and can be used in the humid or frozen circumstance, due to its sealed structure,while the old stype busbar can not be used because of its unstable creepy distance and with stand voltage in such circumstance.

4.The temperature-resistant of its insulator can reach 120°C ,and the withstand voltage of it can reach 5000V,which is much better than the old one.
