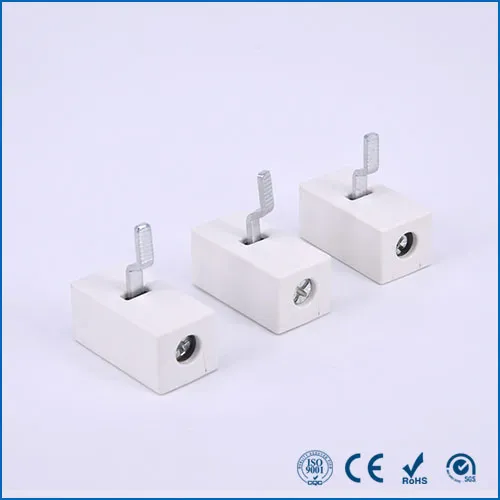

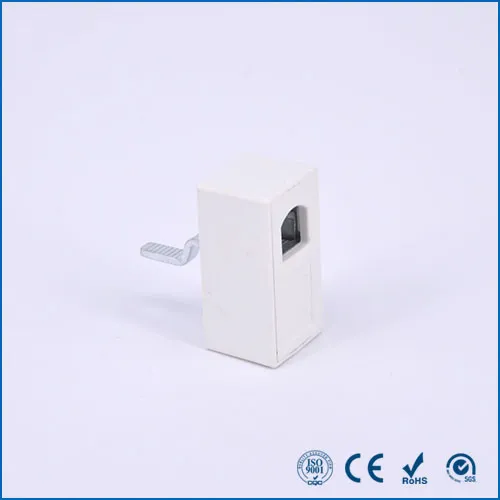

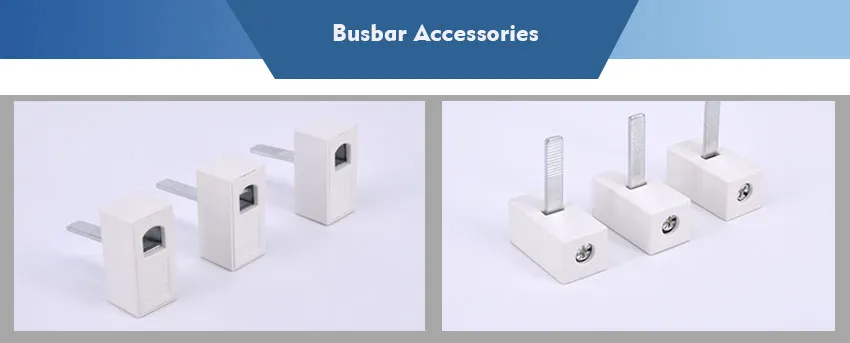

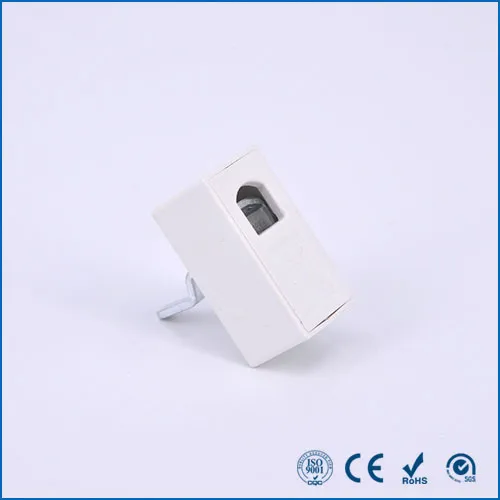

Busbar connectors DPN Type Busbar
Busbar connectors DPN Type Busbar Busbar connectors DPN Type Busbar Busbar connectors DPN Type Busbar Busbar connectors DPN Type Busbar

Busbar connectors DPN Type Busbar

The busbar conversion box is used as a circuit breaker or a modularized rail mounting component for the input (out) line connection.

The product uses pure copper to make good electrical conductivity, low contact resistance (voltage drop 3.2), good versatility and practicality.

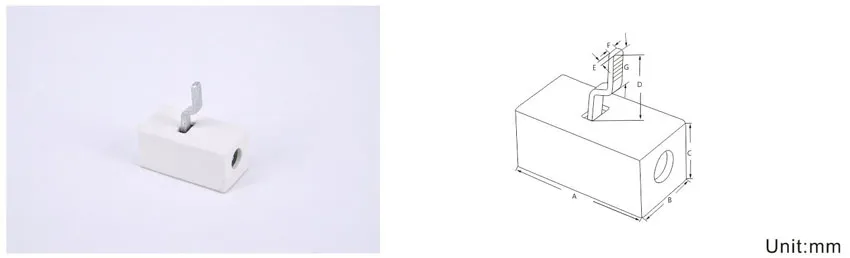

Specification model A B C D E F G Maximum wiring area Referance
Current
DPN  Type
Busbar
ZJH-100 33.7 17.3 15.7 26.2 1.7 4 10 35mm 100A
