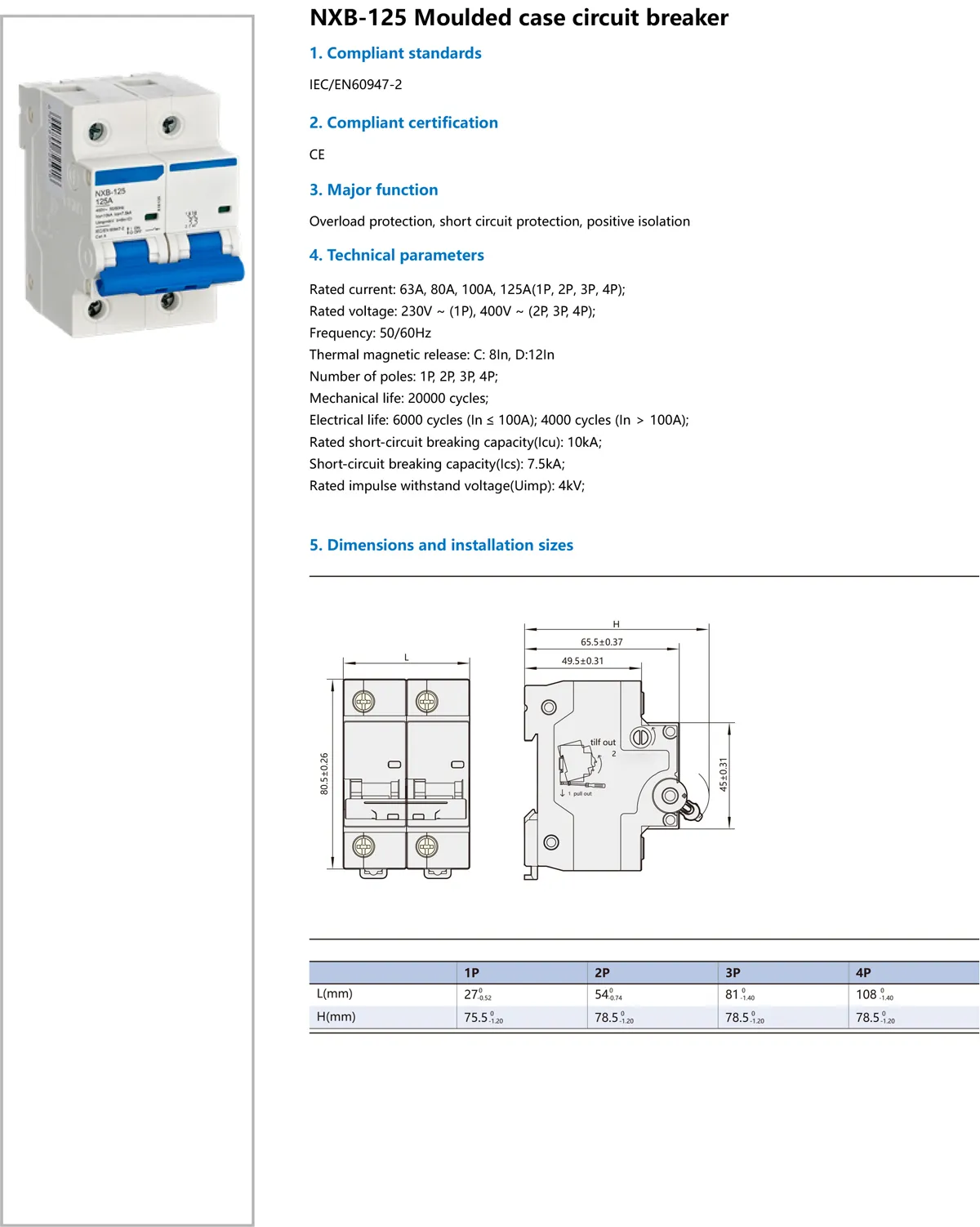

1. Compliant standards: IEC/EN60947-2

2. Major function: Overload protection, short circuit protection, positive isolation

3. Technical parameters：

Rated current: 63A, 80A, 100A, 125A(1P, 2P, 3P, 4P);

Rated voltage: 230V ~ (1P), 400V ~ (2P, 3P, 4P);

Frequency: 50/60Hz

Thermal magnetic release: C: 8In, D:12In

Number of poles: 1P, 2P, 3P, 4P;

Mechanical life: 20000 cycles;

Electrical life: 6000 cycles (In ≤ 100A); 4000 cycles (In ＞ 100A);

Rated short-circuit breaking capacity(Icu): 10kA;

Short-circuit breaking capacity(Ics): 7.5kA;

Rated impulse withstand voltage(Uimp): 4kV
