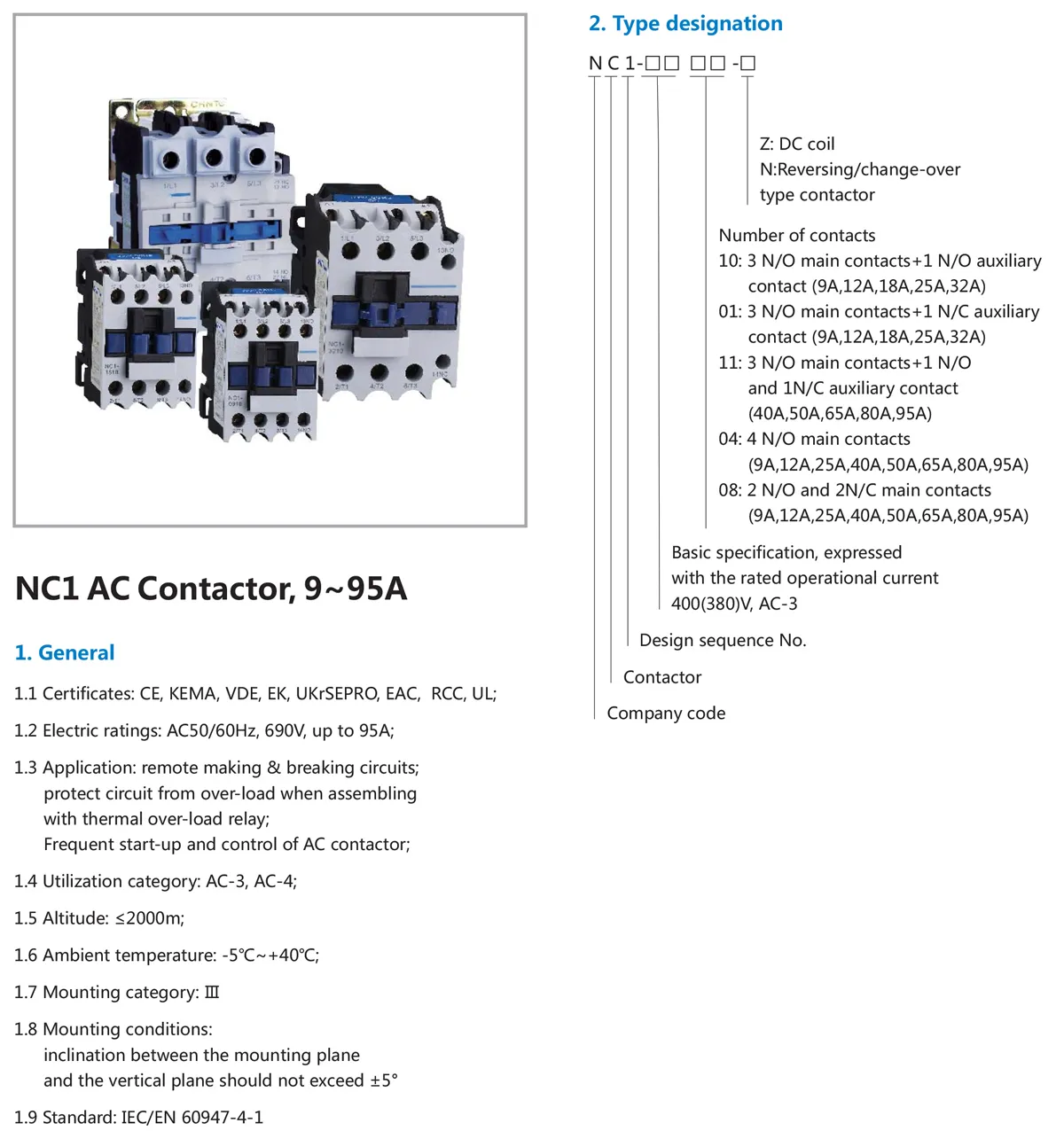

NC1 AC Contactor
NC1 AC Contactor NC1 AC Contactor NC1 AC Contactor NC1 AC Contactor

NC1 AC Contactor

1.1 Certificates: CE, KEMA, VDE, EK, UKrSEPRO, EAC, RCC, UL;

1.2 Electric ratings: AC50/60Hz, 690V, up to 95A;

1.3 Application: remote making & breaking circuits; protect circuit from over-load when assembling with thermal over-load relay; Frequent start-up and control of AC contactor;

1.4 Utilization category: AC-3, AC-4;

1.5 Altitude: ≤2000m;

1.6 Ambient temperature: -5℃~+40℃;

1.7 Mounting category: Ⅲ

1.8 Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5°

1.9 Standard: IEC/EN 60947-4-1
