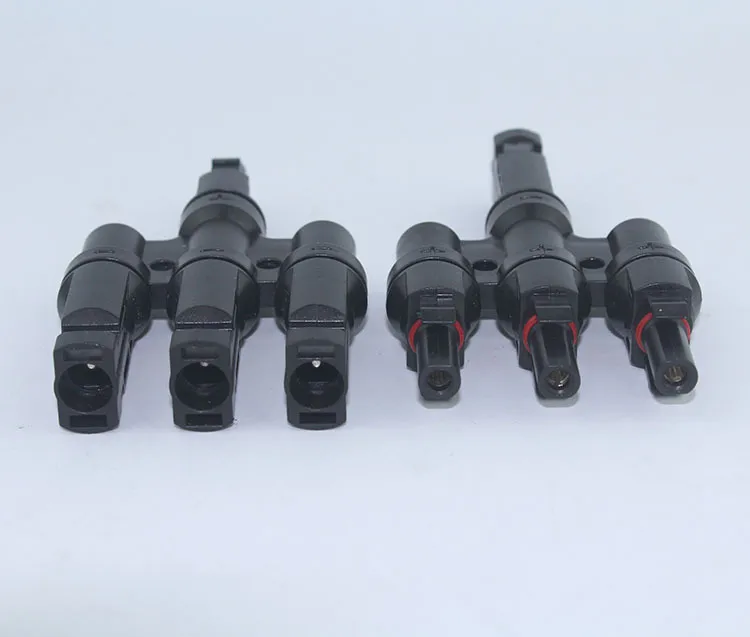

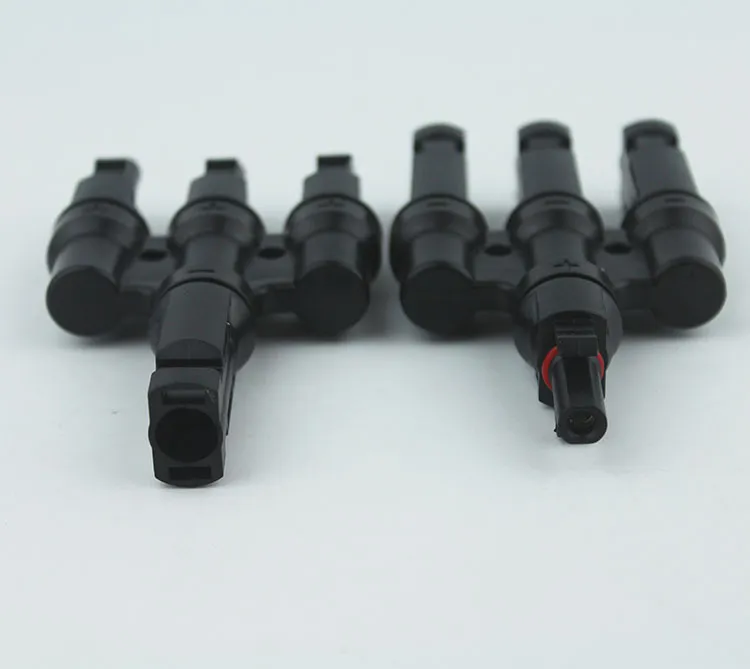

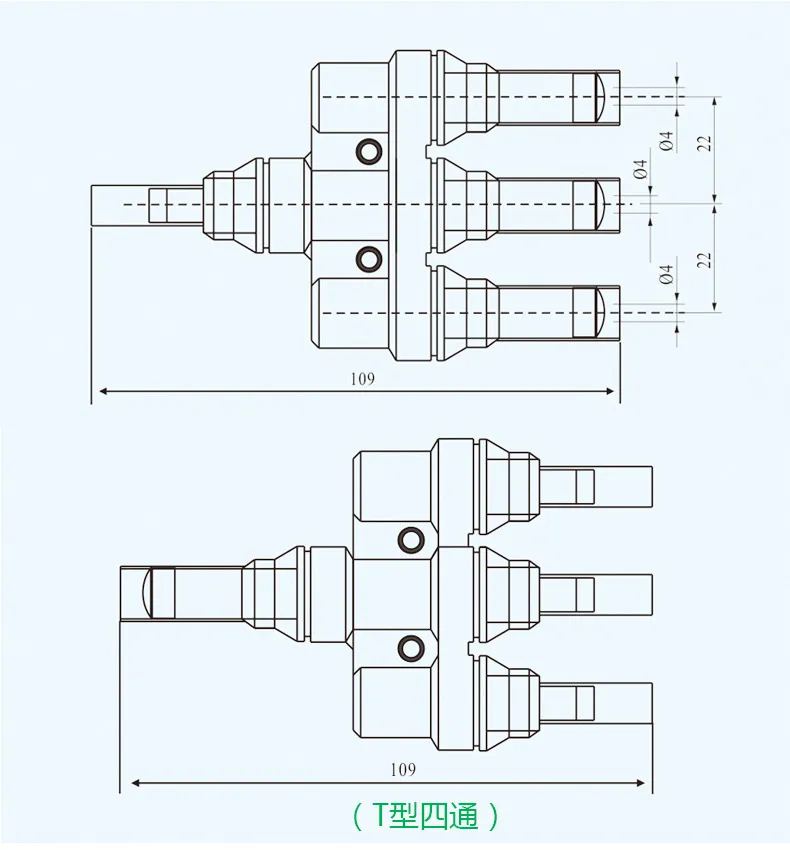

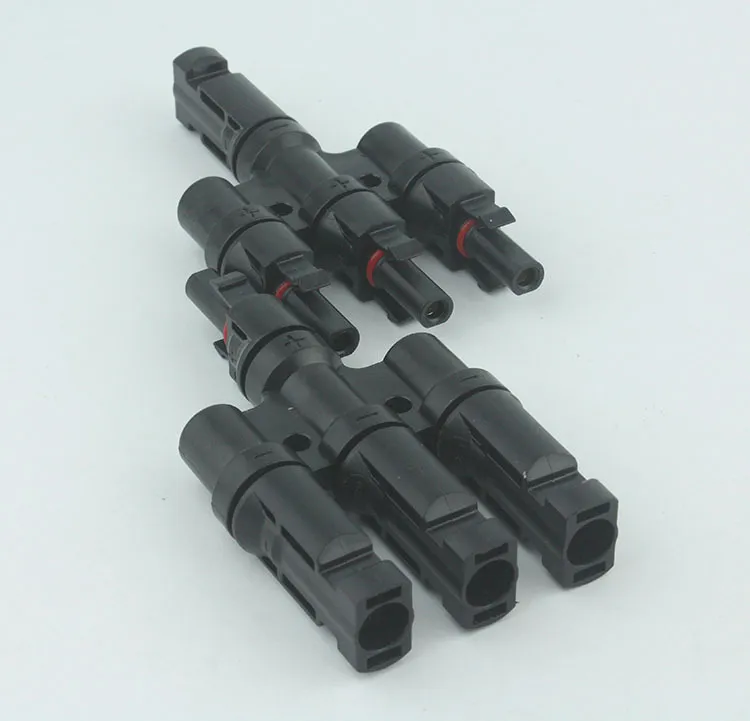

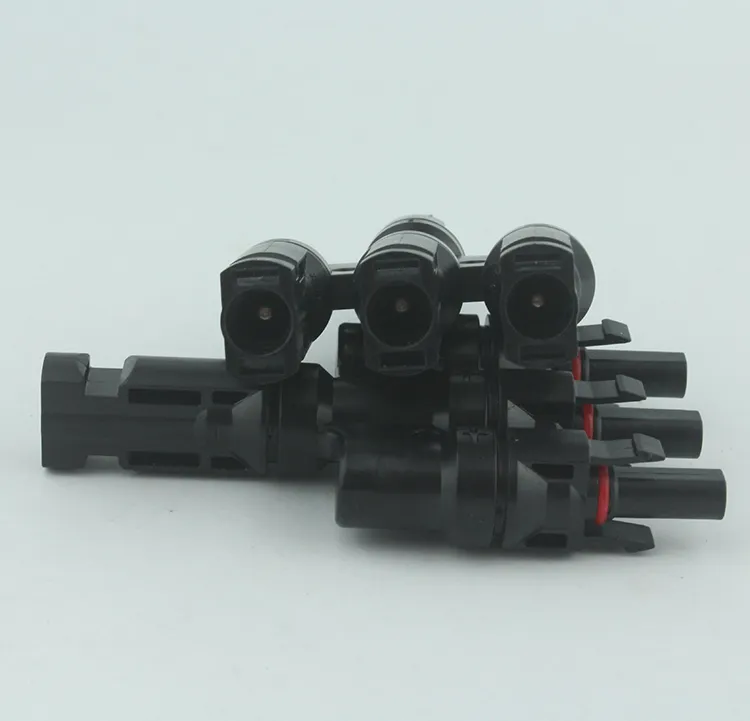

T type four way connector
T type four way connector

T type four way connector

Rated current: four way(40A) Rated voltage: 1000VDC
Test voltage: 6000V(50Hz,1min) Overvoltage type/pollution index: CATIII/2
Contact resistance: four way(1mΩ) Connector conductor material: Copper, silver plating
Connector insulation material: PPO Protection level: IP2*IP65
Flame retardant grade: UL94-VO Safe type: II
Adaptive wire diameter: 2.5-6.0mm² Insertion force: ≤50N
Working temperature range -40°C~+110°C Pull out force: ≥50N
