Stainless steel outdoor comprehensive distribution box
Stainless steel outdoor comprehensive distribution box

Stainless steel outdoor comprehensive distribution box

The outdoor comprehensive distribution cabinet series is suitable for AC 50Hz, rated voltage below 0.4kV transmission and distribution systems. This series of products integrates automatic compensation and distribution, and is a new type of indoor and outdoor low-voltage distribution cabinet that combines multiple functions such as leakage protection, energy metering, overcurrent, overvoltage and phase loss protection. It has the advantages of small size, easy installation, low cost, anti-theft, strong adaptability, aging resistance, accurate operation, and no compensation errors. It is the preferred product for ideal power grid renovation.

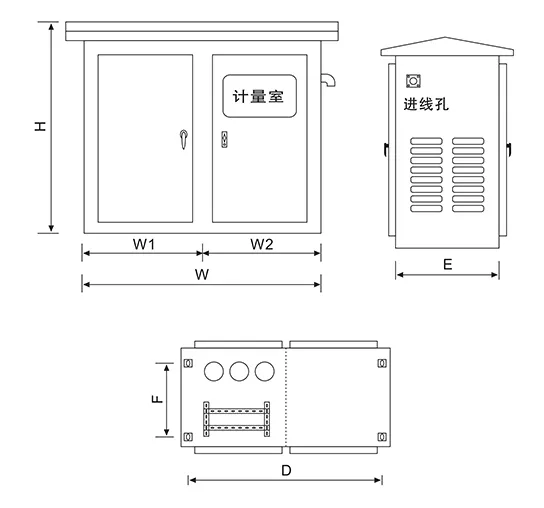

Outline dimension diagram


External dimensions

Transformer capacity W(mm) H(mm) E(mm) Installation size
W W1 W2 D F
<50KVA 650 - - 700 350 250 460
50~80 KVA 900 450 450 800 500 400 860
100~125KVA 1000 550 550 800 500 400 960
160~200KVA 1250 800 450 900 600 500 1210
250~315KVA 1350 900 450 900 700 600 1310
500KVA 1550 1100 450 1200 700 600 1510
