A three-phase electricity meter box is a distribution box for installing three-phase energy meters There is a meter reading window on top, mainly used in the distribution system of industrial and mining enterprises that require three-phase power.
External dimensions

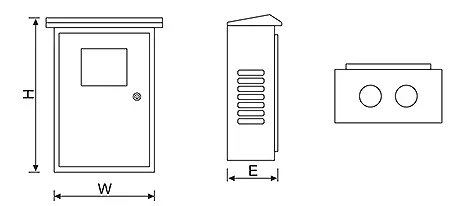

| Name | W(mm) | H(mm) | E(mm) |
| Three phase electric meter box | 300 | 400 | 170 |

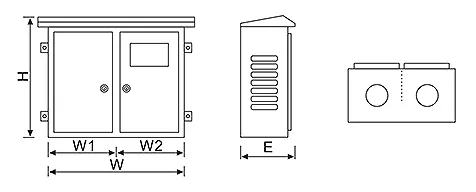

| Product Name | W(mm) | H(mm) | E(mm) | ||
| W | W1 | W2 | |||
| Three phase electric meter box (with switch) | 550 | 275 | 275 | 400 | 180 |

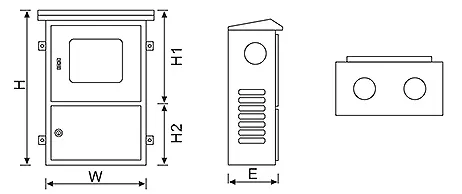

| Product Name | W(mm) | H(mm) | E(mm) | ||
| H | H1 | H2 | |||
| Three phase electric meter box (with switch) | 500 | 750 | 420 | 330 | 180 |
| 600 | 900 | 500 | 400 | 180 | |
| 700 | 1000 | 550 | 450 | 180 | |
