Stainless steel outdoor protective box is a type of distribution box designed and assembled into various control functions based on component models, specifications, and quantities. Due to the adjustable size of the box body, the structure is tightly packed to a relatively complete combination.

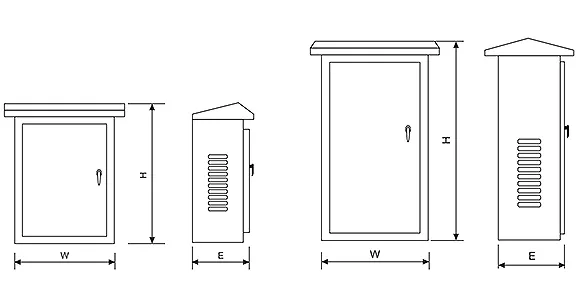

External dimensions
| Product Name | Specifications | W(mm) | H(mm) | E(mm) |
| Outdoor power box | 253015 | 250 | 300 | 140 |
| 304017 | 300 | 400 | 170 | |
| 405018 | 400 | 500 | 180 | |
| 506018 | 500 | 600 | 180 | |
| 507018 | 500 | 700 | 200 | |
| 608020 | 600 | 800 | 200 | |
| 608025 | 600 | 800 | 250 | |
| 8010020 | 800 | 1000 | 200 | |
| Outdoor power cabinet | 6010035 | 600 | 1000 | 350 |
| 6012035 | 600 | 1200 | 350 | |
| 6012040 | 600 | 1200 | 400 | |
| 7015037 | 700 | 1500 | 370 | |
| 7017037 | 700 | 1700 | 370 | |
| 8018040 | 800 | 1800 | 400 |
