Stainless steel PZ40 lighting box
Stainless steel PZ40 lighting box

Stainless steel PZ40 lighting box

The stainless steel PZ40 modular terminal combination electrical appliance is suitable for use in single-phase three wire or three-phase five wire end circuits with an AC frequency of 50Hz, a rated working voltage of 220V or 380V, and a rated current not exceeding 100A. It is used to control and distribute electrical equipment, and to protect against overload, short circuit, leakage, and undervoltage of the circuit. It can be widely used in modern hotels, commercial, industrial and mining enterprises, and residential buildings.

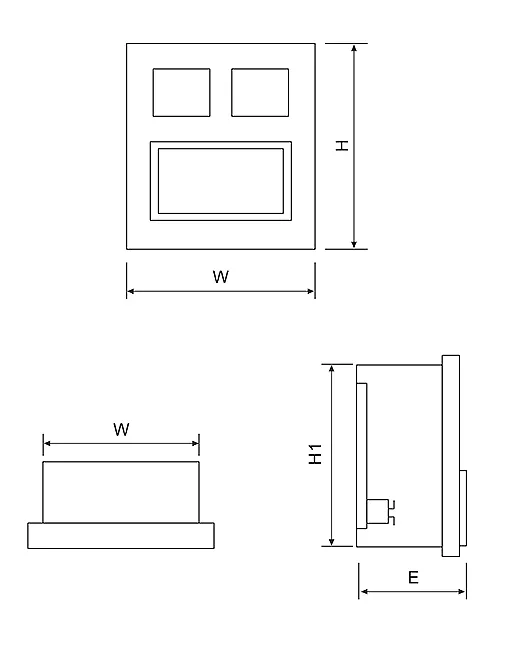

Specifications Panel size(mm) Box size(mm) E(mm)
W H W1 H1
A table(6#) 250 400 210 360 140
Two tables(10#) 400 400 360 360 140
Three tables(15#) 500 400 460 360 140

Note: The external dimensions of the exposed installation are the same as those of the concealed installation H and W.
