DC PV combiner box
DC PV combiner box

DC PV combiner box

Comprehensive Compatibility: The DC PV combiner box is designed to accommodate a wide range of PV string current inputs, from 4 to 24 branches, and supports input currents of up to 25A, making it a versatile solution for various solar panel configurations.

Advanced Communication Interface: The product features an RS485 communication interface with 2500V optoelectronic isolation, ensuring reliable and secure data transmission.

Accurate Monitoring: The LED display provides 8-bit accuracy and is precise to 0.1, allowing for real-time monitoring of system performance.

Safety and Reliability: The product is CE certified and has a 3-month to 1-year warranty, ensuring a high level of quality and reliability.

User-Friendly Design: The DC PV combiner box is designed with a user-friendly interface, allowing for easy installation and operation, and is suitable for use in various solar applications.

Categories:

Combiner Box
Inquiry Email
Model FUCB-MDP2/1N FUCB-MDP3/1N FUCB-MDP4/1N
Number of DC Inputs 2 3 4
Material of Box ABS
Max. Rated Voltage DC 1000V
DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 32A 50A 63A
Surge Protection DC Type II, In =20kA, Imax=40kA, Ucpv=1000V DC
Over-Voltage Category Cat III
Connection Type DC Input PG09/PV Connector, IP68
Input Cable Size for Negative and Positive Φ4-8mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG13.5
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃
Humidity: 0-99%
Altitude ≤ 2000m Derating for above 2000m
Installation Wall mounting/ Padlockable latch
Optional Customized Service:
1. Support PV connector
2. Support drawing customization
3. Support installation of DC isolator switch
4. Support 2 input 2 output, 4 input 2 output, etc .


Model (FUCB Series) MD2/1 MD4/1 MD6/1 MD8/1 MD10/1 MD12/1
Number of DC Inputs 2 4 6 8 10 12
Material of Box Coated Iron
Protection Level IP65
IK Impact Resisstance Class IK08
Max. Rated Voltage DC 1000V (Support 1500V)

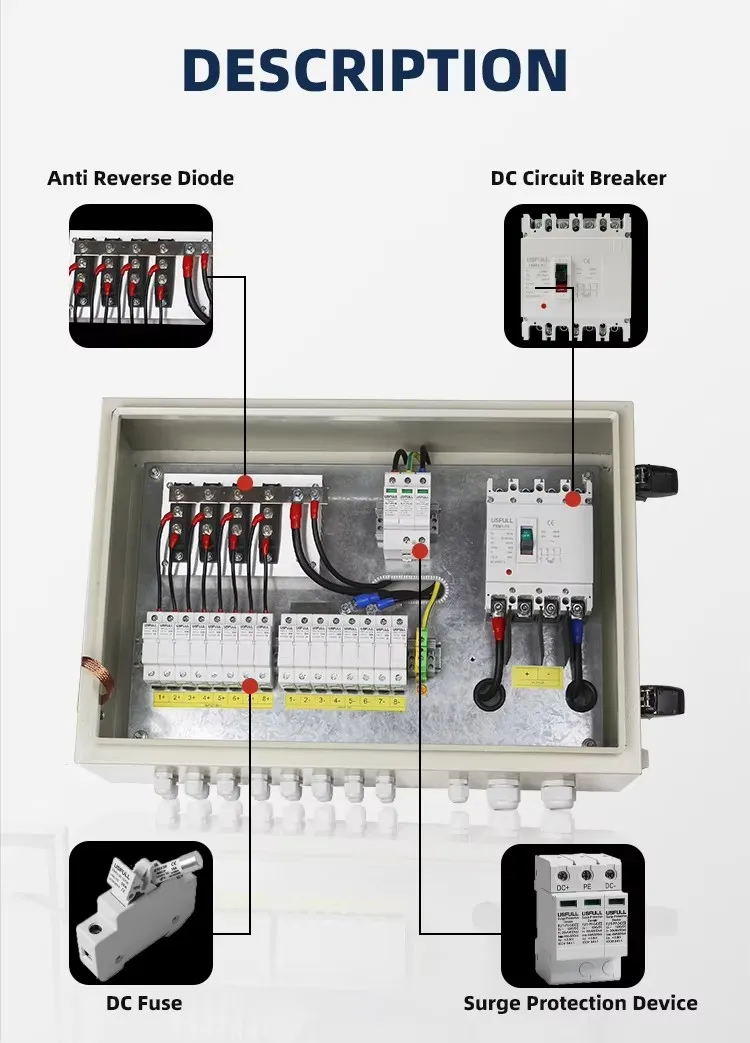

DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 32A 63A 100A 125A 150A 200A
Surge Protection DC Type II, In=20kA, Imax=40kA, Ucpv=1000V DC (Support 1500V)
Over-Voltage Category Cat III
Diode for The Function of Anti- Reflux Bulid in
Connection Type DC Input PG09/PV connector, IP68
Input Cable S ize for Negative and Positive Φ4-8 mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG11 PG11 PG13 .5 PG19 PG19 PG19
Gland Connectors Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃, Humidity: 0-99%
Altitude ≤2000m Derating for above 2000m
Installation Wall mounting/Padlockable latch
Optional Customized Service:
1. Support 1500V
2. Support PV connector
3. Support monitoring function
4. Support installation of DC isolator switch
5. Support 2 input 2 output, 4 input 2 output, etc.


Model (FUCB Series) MD14/1 MD16/1 MD18/1 MD20/1 MD22/1 MD24/1
Number of DC Inputs 14 16 18 20 22 24
Material of Box Coated Iron
Protection Level IP65
IK Impact Resisstance Class IK08
Max. Rated Voltage DC 1000V (Support 1500V)
DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 225A 250A 275A 300A 315A 350A
Surge Protection DC Type II, In=20kA, Imax=40kA, Ucpv=1000V DC (Support 1500V)
Over-Voltage Category Cat III
Diode for The Function of Anti- Reflux Bulid in
Connection Type DC Input PG09/PV connector, IP68
Input Cable S ize for Negative and Positive Φ4-8 mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG25 PG25 PG29 PG29 PG29 PG29
Gland Connectors Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃, Humidity: 0-99%
Altitude ≤2000m Derating for above 2000m
Installation Wall mounting/Padlockable latch
Optional Customized Service:
1. Support 1500V
2. Support PV connector
3. Support monitoring function
4. Support installation of DC isolator switch
5. Support 2 input 2 output, 4 input 2 output, etc.
