Solar PV Combiner Box DC Combination Lock Box 2 4 6 8 12 strings
Solar PV Combiner Box DC Combination Lock Box 2 4 6 8 12 strings

Solar PV Combiner Box DC Combination Lock Box 2 4 6 8 12 strings

urable and Rugged Design: The Solar PV Combiner Box is made of high-quality iron with a spray-coated finish, ensuring a long-lasting and corrosion-resistant product.

Certified Safety: This product meets international safety standards with ISO CE certification, providing users with peace of mind when handling electrical systems.

Multi-String Compatibility: The USFULL Solar PV Combiner Box is designed to accommodate 2, 4, 6, 8, or 12 strings, making it a versatile solution for various solar system applications.

IP65 Protection: The product is protected against dust and water ingress, ensuring reliable performance in harsh environments.

User Input Guarantee: As requested by a valued customer, the USFULL Solar PV Combiner Box comes with a 12-month warranty, providing assurance of the product's quality and performance.

Categories:

Combiner Box

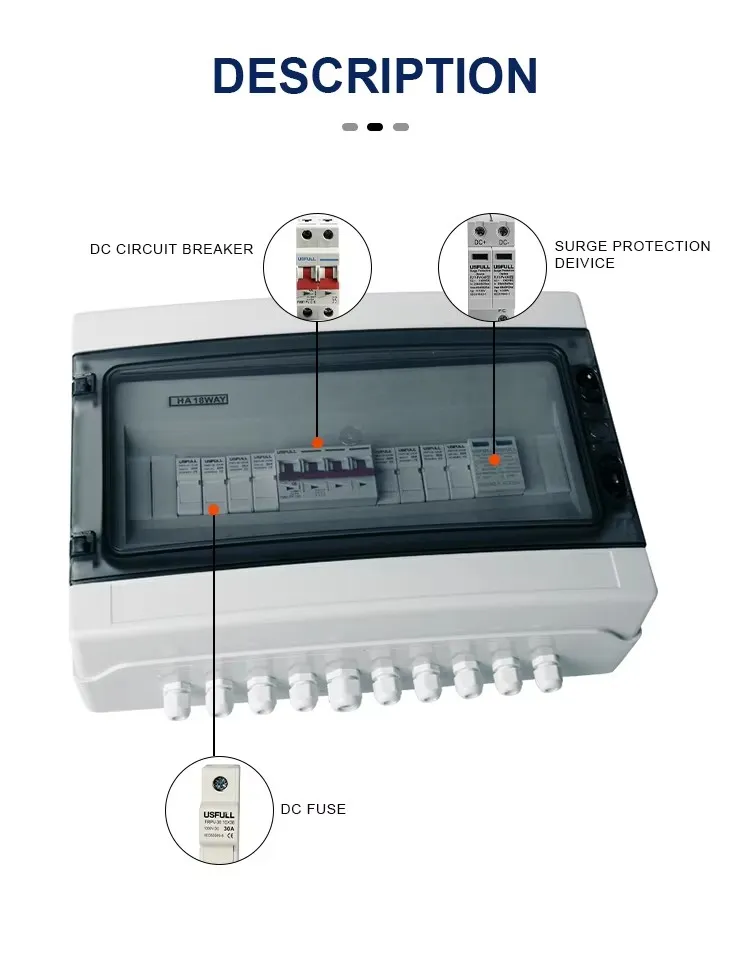

Model FUCB-MDP2/1N FUCB-MDP3/1N FUCB-MDP4/1N
Number of DC Inputs 2 3 4
Material of Box ABS
Max. Rated Voltage DC 1000V
DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 32A 50A 63A
Surge Protection DC Type II, In =20kA, Imax=40kA, Ucpv=1000V DC
Over-Voltage Category Cat III
Connection Type DC Input PG09/PV Connector, IP68
Input Cable Size for Negative and Positive Φ4-8mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG13.5
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃
Humidity: 0-99%
Altitude ≤ 2000m Derating for above 2000m
Installation Wall mounting/ Padlockable latch
Optional Customized Service:
1. Support PV connector
2. Support drawing customization
3. Support installation of DC isolator switch
4. Support 2 input 2 output, 4 input 2 output, etc .
