1000VDC 5 String PV Array Combiner Box 5 In 5 Out PV Combiner Box 5kW
1000VDC 5 String PV Array Combiner Box 5 In 5 Out PV Combiner Box 5kW

1000VDC 5 String PV Array Combiner Box 5 In 5 Out PV Combiner Box 5kW

Reliable Solar Power Solution: The 1000VDC 5 String PV Array Combiner Box is designed to provide a reliable solution for solar power systems, supporting up to 5 kW of power output.

High Protection Level: The product features an IP65 protection level, ensuring it can withstand harsh environmental conditions and provide optimal performance.

Flexible Configuration Options: The combiner box can be configured to support a variety of user inputs, including different ampere ratings, making it a versatile solution for various solar power applications.

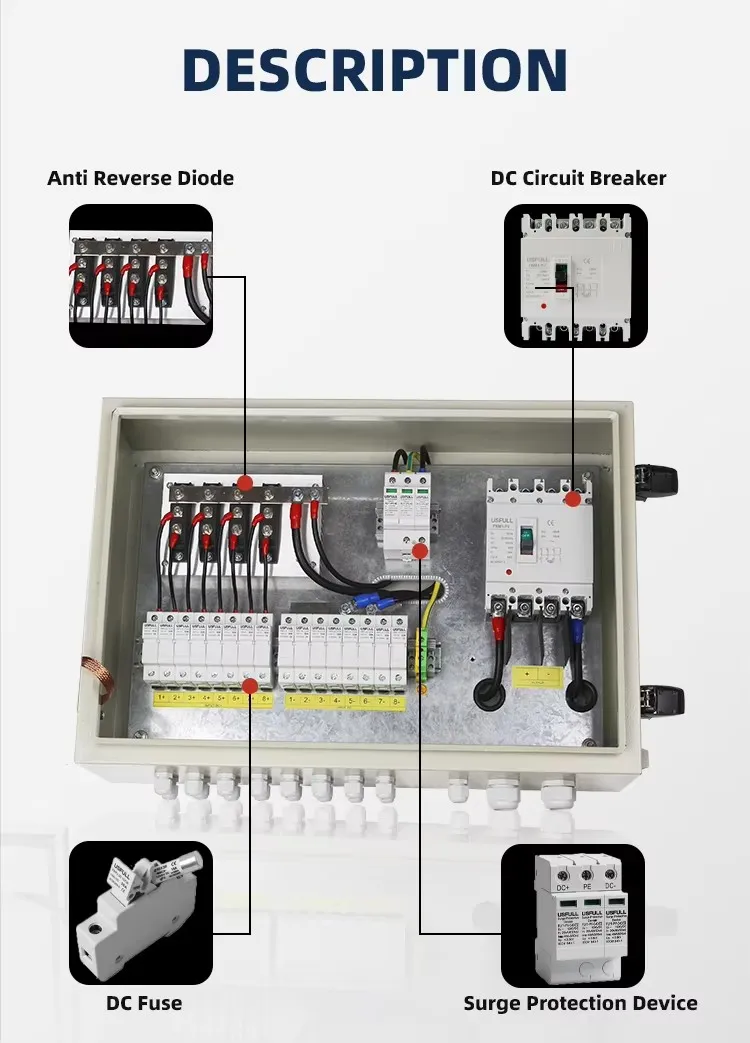

Advanced Safety Features: The product is equipped with a 15A DC fuse, 1000V DC 32A fuse holder, and 125A DC breaker, providing enhanced safety and protection against electrical surges and overloads.

Long-Lasting Performance: Backed by an 18-month warranty, this product is built to provide long-lasting performance and durability, ensuring a smooth and efficient solar power experience for users.

Categories:

Combiner Box

Model (FUCB Series) MD2/1 MD4/1 MD6/1 MD8/1 MD10/1 MD12/1
Number of DC Inputs 2 4 6 8 10 12
Material of Box Coated Iron
Protection Level IP65
IK Impact Resisstance Class IK08
Max. Rated Voltage DC 1000V (Support 1500V)
DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 32A 63A 100A 125A 150A 200A
Surge Protection DC Type II, In=20kA, Imax=40kA, Ucpv=1000V DC (Support 1500V)
Over-Voltage Category Cat III
Diode for The Function of Anti- Reflux Bulid in
Connection Type DC Input PG09/PV connector, IP68
Input Cable S ize for Negative and Positive Φ4-8 mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG11 PG11 PG13 .5 PG19 PG19 PG19
Gland Connectors Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃, Humidity: 0-99%
Altitude ≤2000m Derating for above 2000m
Installation Wall mounting/Padlockable latch
Optional Customized Service:
1. Support 1500V
2. Support PV connector
3. Support monitoring function
4. Support installation of DC isolator switch
5. Support 2 input 2 output, 4 input 2 output, etc.


Model (FUCB Series) MD14/1 MD16/1 MD18/1 MD20/1 MD22/1 MD24/1
Number of DC Inputs 14 16 18 20 22 24
Material of Box Coated Iron
Protection Level IP65
IK Impact Resisstance Class IK08
Max. Rated Voltage DC 1000V (Support 1500V)
DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 225A 250A 275A 300A 315A 350A
Surge Protection DC Type II, In=20kA, Imax=40kA, Ucpv=1000V DC (Support 1500V)
Over-Voltage Category Cat III
Diode for The Function of Anti- Reflux Bulid in
Connection Type DC Input PG09/PV connector, IP68
Input Cable S ize for Negative and Positive Φ4-8 mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG25 PG25 PG29 PG29 PG29 PG29
Gland Connectors Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃, Humidity: 0-99%
Altitude ≤2000m Derating for above 2000m
Installation Wall mounting/Padlockable latch
Optional Customized Service:
1. Support 1500V
2. Support PV connector
3. Support monitoring function
4. Support installation of DC isolator switch
5. Support 2 input 2 output, 4 input 2 output, etc.
