8 String PV DC Combiner Box IP65 Waterproof For Solar System
8 String PV DC Combiner Box IP65 Waterproof For Solar System

8 String PV DC Combiner Box IP65 Waterproof For Solar System

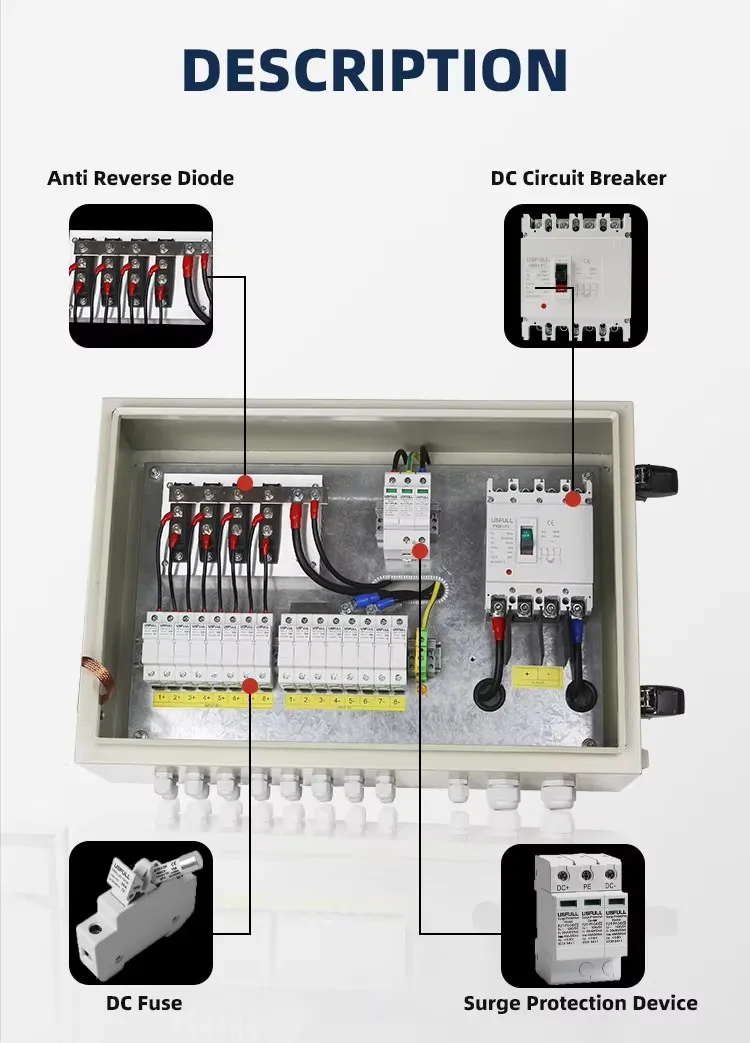

Durable and Waterproof Design: The 8 String PV DC Combiner Box is designed with a robust iron frame and spray-coated finish, ensuring a long-lasting and reliable performance. Its IP65 rating ensures it is waterproof, suitable for use in various outdoor environments.

Certified for Safety: This product meets the ISO CE certification standards, guaranteeing its compliance with international safety regulations.

Flexible and Scalable: With 8 DC input strings and 1 output string, this combiner box can accommodate various solar power system configurations, making it an ideal choice for users with diverse needs.

Operating Temperature Range: The combiner box operates within a wide temperature range of -25°C to +60°C, ensuring its performance remains consistent in various environmental conditions.

Comprehensive Warranty: The product comes with a 12-month warranty, providing users with peace of mind and protection against defects or malfunctions.

Categories:

Combiner Box
Model FUCB-MDP2/1N FUCB-MDP3/1N FUCB-MDP4/1N
Number of DC Inputs 2 3 4
Material of Box ABS
Max. Rated Voltage DC 1000V
DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 32A 50A 63A
Surge Protection DC Type II, In =20kA, Imax=40kA, Ucpv=1000V DC
Over-Voltage Category Cat III
Connection Type DC Input PG09/PV Connector, IP68
Input Cable Size for Negative and Positive Φ4-8mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG13.5
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃
Humidity: 0-99%
Altitude ≤ 2000m Derating for above 2000m
Installation Wall mounting/ Padlockable latch
Optional Customized Service:
1. Support PV connector
2. Support drawing customization
3. Support installation of DC isolator switch
4. Support 2 input 2 output, 4 input 2 output, etc .

Model (FUCB Series) MD2/1 MD4/1 MD6/1 MD8/1 MD10/1 MD12/1
Number of DC Inputs 2 4 6 8 10 12
Material of Box Coated Iron
Protection Level IP65
IK Impact Resisstance Class IK08
Max. Rated Voltage DC 1000V (Support 1500V)
DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 32A 63A 100A 125A 150A 200A
Surge Protection DC Type II, In=20kA, Imax=40kA, Ucpv=1000V DC (Support 1500V)
Over-Voltage Category Cat III
Diode for The Function of Anti- Reflux Bulid in
Connection Type DC Input PG09/PV connector, IP68
Input Cable S ize for Negative and Positive Φ4-8 mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG11 PG11 PG13 .5 PG19 PG19 PG19
Gland Connectors Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃, Humidity: 0-99%
Altitude ≤2000m Derating for above 2000m
Installation Wall mounting/Padlockable latch
Optional Customized Service:
1. Support 1500V
2. Support PV connector
3. Support monitoring function
4. Support installation of DC isolator switch
5. Support 2 input 2 output, 4 input 2 output, etc.

Model (FUCB Series) MD14/1 MD16/1 MD18/1 MD20/1 MD22/1 MD24/1
Number of DC Inputs 14 16 18 20 22 24
Material of Box Coated Iron
Protection Level IP65
IK Impact Resisstance Class IK08
Max. Rated Voltage DC 1000V (Support 1500V)
DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 225A 250A 275A 300A 315A 350A
Surge Protection DC Type II, In=20kA, Imax=40kA, Ucpv=1000V DC (Support 1500V)
Over-Voltage Category Cat III
Diode for The Function of Anti- Reflux Bulid in
Connection Type DC Input PG09/PV connector, IP68
Input Cable S ize for Negative and Positive Φ4-8 mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG25 PG25 PG29 PG29 PG29 PG29
Gland Connectors Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃, Humidity: 0-99%
Altitude ≤2000m Derating for above 2000m
Installation Wall mounting/Padlockable latch
Optional Customized Service:
1. Support 1500V
2. Support PV connector
3. Support monitoring function
4. Support installation of DC isolator switch
5. Support 2 input 2 output, 4 input 2 output, etc.
