Model Number:FUCB Series
Protection Level:IP65
Certification:CE
Connector:PG Connector / PV Plug Connector
Communication:Optional (Support)
Rated Voltage:500V / 1000V / 1500V
Strings:1~32strings
Material:Iron / Stainless Steel / Plastic
Warranty:12 months Installation Site Indoor / Outdoor
Application:Solar PV System / Battery System

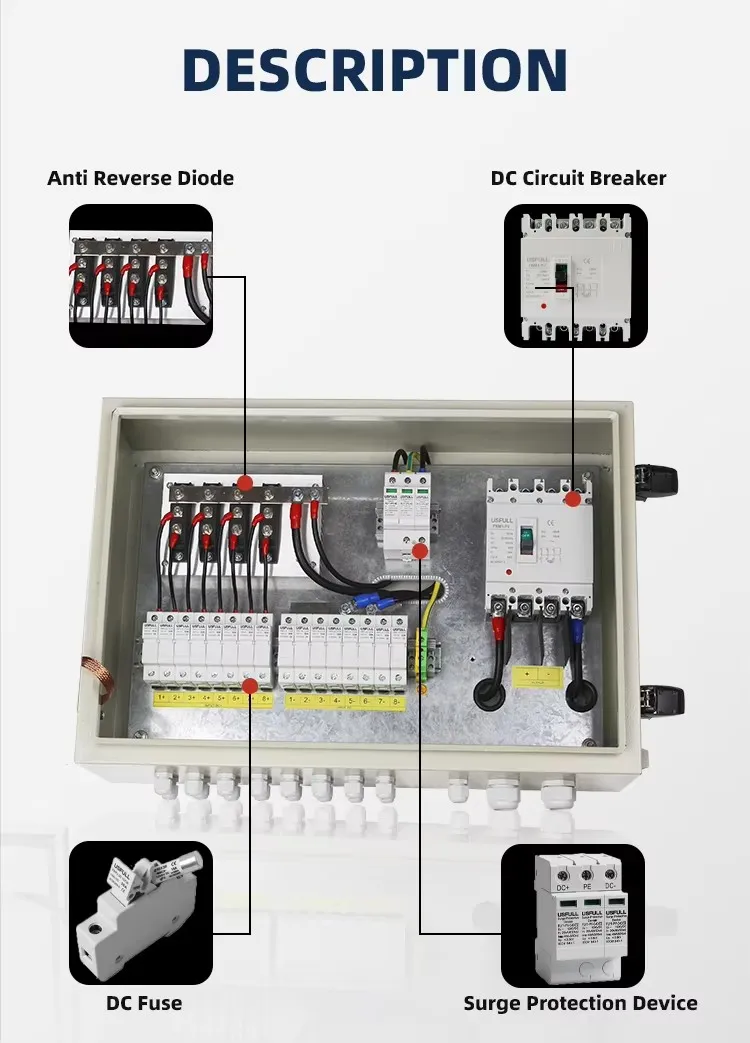

| SPECIFICATION | ||||
| Type | FU-CB8 | FU-CB10 | FU-CB12 | FU-CB16 |
| IP Protection Class(IEC60529) | IP65 | |||
| IK Impact Resisstance Classe(IEC62262) | IK08 | |||
| Max Rated Voltage DC | 1000V | |||
| Fuse Holder | 1000V DC 30A | |||
| Surge Protection DC | Type Ⅱ/In=20KA, Imax=40KA, Ucpv=1000V DC | |||
| Number of DC Inputs | 8 | 10 | 12 | 16 |
| Connection Type DC Input | PG09, IP68 | |||
| Input Fuse | 15A | |||
| Number of DC Outputs | 1 | |||
| Shell material | Iron with spray coated | |||
| Connection Type DC Output | PG36, IP68, Φ22~32mm(Be Customized) | |||
| Gland Connectors | Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68 | |||
| Connection DC Earth Protection | PG16, IP68,Φ10~14mm | |||
| Operating Temperature | -25℃~+60℃ | |||
| Permissible relative humidity | 0-99%, no condensation | |||
| Altitude | ≤2000m,2000m,Derating | |||
| Installation | Wall mounting | |||
| Width(mm) | 600 | 600 | 600 | 600 |
| Height(mm) | 400 | 400 | 550 | 550 |
| Depth(mm) | 180 | 180 | 180 | 180 |
