FU-CB6 6 Strings combination key lock box pv solar combiner box ip 65
FU-CB6 6 Strings combination key lock box pv solar combiner box ip 65

FU-CB6 6 Strings combination key lock box pv solar combiner box ip 65

Durable and Weather-Resistant: The FU-CB6 PV Combiner Box features an IP65 rating, ensuring it can withstand harsh environmental conditions, including heavy rain and dust, making it an ideal choice for outdoor solar power system installations.

High-Voltage Capability: This solar combiner box is designed to handle DC 1000V, making it suitable for large-scale solar power systems, providing reliable and efficient energy harvesting.

Long-Lasting Performance: With a 1-year and 3-year warranty, the USFULL FU-CB6 PV Combiner Box offers peace of mind for our customers, ensuring optimal performance and durability for years to come.

Easy Installation: The user-friendly design and compact size of this combiner box facilitate hassle-free installation, allowing our customers to quickly and easily integrate it into their solar power system.

Reliable Brand: USFULL is a reputable brand with a proven track record of producing high-quality solar-related products, providing our customers with confidence in their purchase.

Categories:

Combiner Box


Model FUCB-MDP2/1N FUCB-MDP3/1N FUCB-MDP4/1N
Number of DC Inputs 2 3 4
Material of Box ABS
Max. Rated Voltage DC 1000V

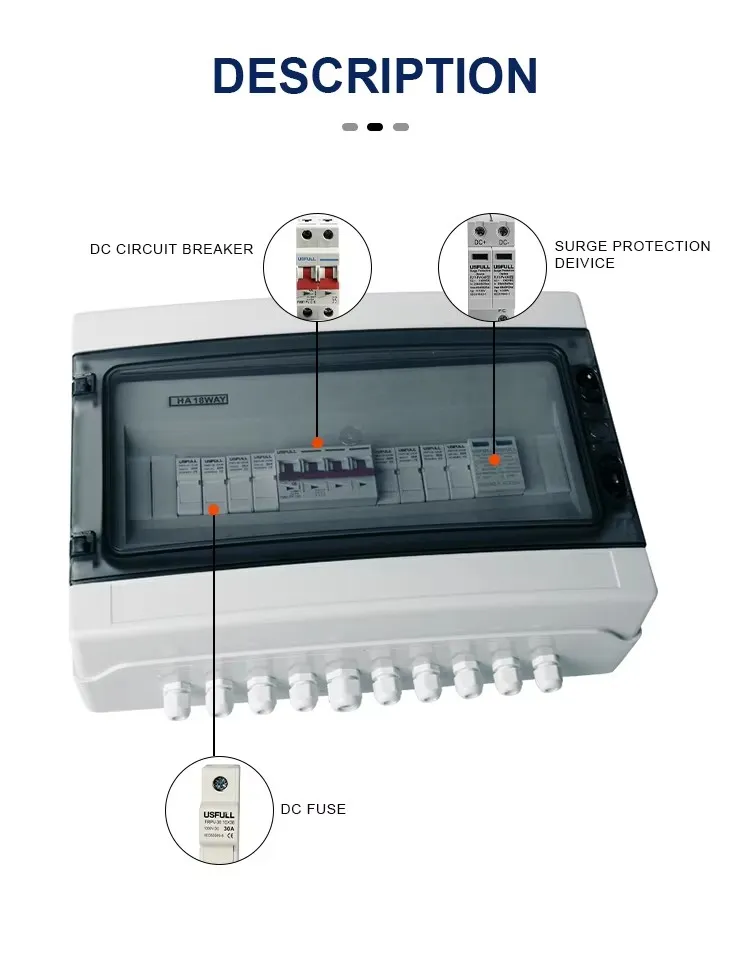

DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 32A 50A 63A
Surge Protection DC Type II, In =20kA, Imax=40kA, Ucpv=1000V DC
Over-Voltage Category Cat III
Connection Type DC Input PG09/PV Connector, IP68
Input Cable Size for Negative and Positive Φ4-8mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG13.5
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃
Humidity: 0-99%
Altitude ≤ 2000m Derating for above 2000m
Installation Wall mounting/ Padlockable latch
Optional Customized Service:
1. Support PV connector
2. Support drawing customization
3. Support installation of DC isolator switch
4. Support 2 input 2 output, 4 input 2 output, etc .
