6 Strings PV Array Combiner Box Used In Solar Energy System For Solar Panel
6 Strings PV Array Combiner Box Used In Solar Energy System For Solar Panel

6 Strings PV Array Combiner Box Used In Solar Energy System For Solar Panel

urable and Water-Resistant Design: The 6 Strings PV Array Combiner Box features an IP65 protection level, ensuring it withstands harsh environmental conditions while maintaining optimal performance. This is particularly useful for installers in coastal areas who require a reliable solution for their solar energy systems.

Certified for Safety and Quality: The product holds a CCC certification, indicating compliance with industry standards for safety and quality. This certification provides peace of mind for customers seeking a trustworthy brand.

High Voltage Capability: The USFULL PV Combiner Box supports a rated voltage of 1000V DC, making it suitable for large-scale solar panel systems.

Long-Term Reliability: The product comes with an 18-month warranty, offering customers assurance of its durability and performance.

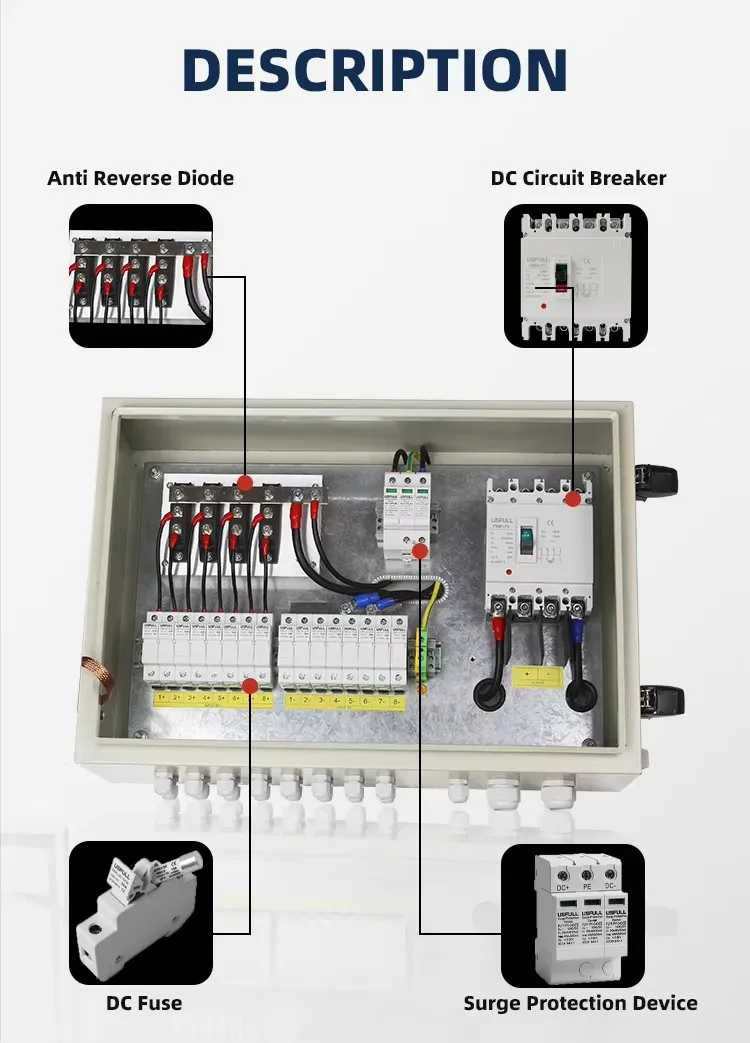

Efficient Energy Harvesting: The USFULL PV Combiner Box is designed to efficiently manage and combine energy from multiple solar panels, maximizing energy output and optimizing system performance.

Categories:

Combiner Box


SPECIFICATION
Type FU-CB8 FU-CB10 FU-CB12 FU-CB16
IP Protection Class(IEC60529) IP65
IK Impact Resisstance Classe(IEC62262) IK08
Max Rated Voltage DC 1000V
Fuse Holder 1000V DC 30A
Surge Protection DC Type Ⅱ/In=20KA, Imax=40KA, Ucpv=1000V DC
Number of DC Inputs 8 10 12 16
Connection Type DC Input PG09, IP68
Input Fuse 15A
Number of DC Outputs 1
Shell material Iron with spray coated
Connection Type DC Output PG36, IP68, Φ22~32mm(Be Customized)
Gland Connectors Material: Nylon Plastic, Seals: Nitrile Rubber Buna, IP68
Connection DC Earth Protection PG16, IP68,Φ10~14mm
Operating Temperature -25℃~+60℃
Permissible relative humidity 0-99%, no condensation
Altitude ≤2000m,2000m,Derating
Installation Wall mounting
Width(mm) 600 600 600 600
Height(mm) 400 400 550 550
Depth(mm) 180 180 180 180
