High Quality PV Combiner Box with 2 String 3 String 4 String PV Array Combiner Box 1000V Solar PV Co
High Quality PV Combiner Box with 2 String 3 String 4 String PV Array Combiner Box 1000V Solar PV Co

High Quality PV Combiner Box with 2 String 3 String 4 String PV Array Combiner Box 1000V Solar PV Co

Model Number FU-CB
Application Solar System
Mounting Type Screw Mounting
Output Voltage (V) 1000VDC
Output Frequency 50/60Hz
Work Time (h) 24 Hours per day
Product Name Solar PV Combiner Box
Input Channel Number 2/ 3/ 4 strings

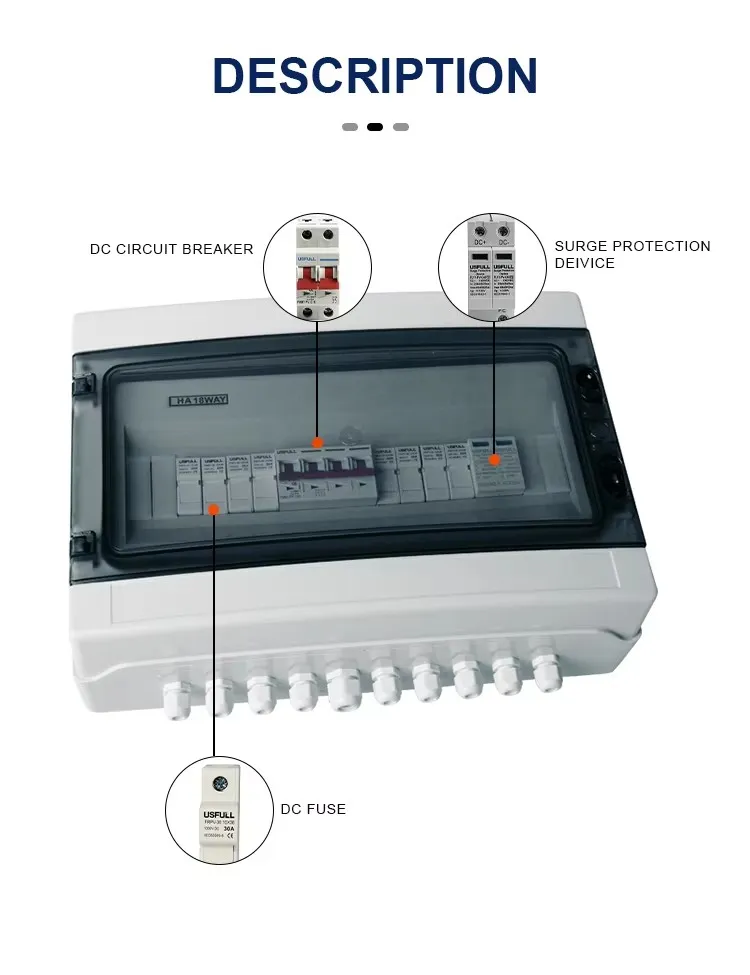

DC Breaker 32A/50A/63A
DC Fuse 15A Fuse link, 32A Holder, 1000VDC
DC SPD In =20kA, Imax=40kA, 1000VDC
Max. Input Voltage 1000VDC
Shell Material Plastic ABS
Connection Type DC Input PG09/PV Connector, IP68
Number of DC Outputs 1 (Support customize for output number)
Protection Level IP65

Categories:

Combiner Box


Model FUCB-MDP2/1N FUCB-MDP3/1N FUCB-MDP4/1N
Number of DC Inputs 2 3 4
Material of Box ABS
Max. Rated Voltage DC 1000V
DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 32A 50A 63A
Surge Protection DC Type II, In =20kA, Imax=40kA, Ucpv=1000V DC
Over-Voltage Category Cat III
Connection Type DC Input PG09/PV Connector, IP68
Input Cable Size for Negative and Positive Φ4-8mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG13.5
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃
Humidity: 0-99%
Altitude ≤ 2000m Derating for above 2000m
Installation Wall mounting/ Padlockable latch
Optional Customized Service:
1. Support PV connector
2. Support drawing customization
3. Support installation of DC isolator switch
4. Support 2 input 2 output, 4 input 2 output, etc .
