Factory Price pv combiner box with 4 string IP66 waterproof solar box
Factory Price pv combiner box with 4 string IP66 waterproof solar box

Factory Price pv combiner box with 4 string IP66 waterproof solar box

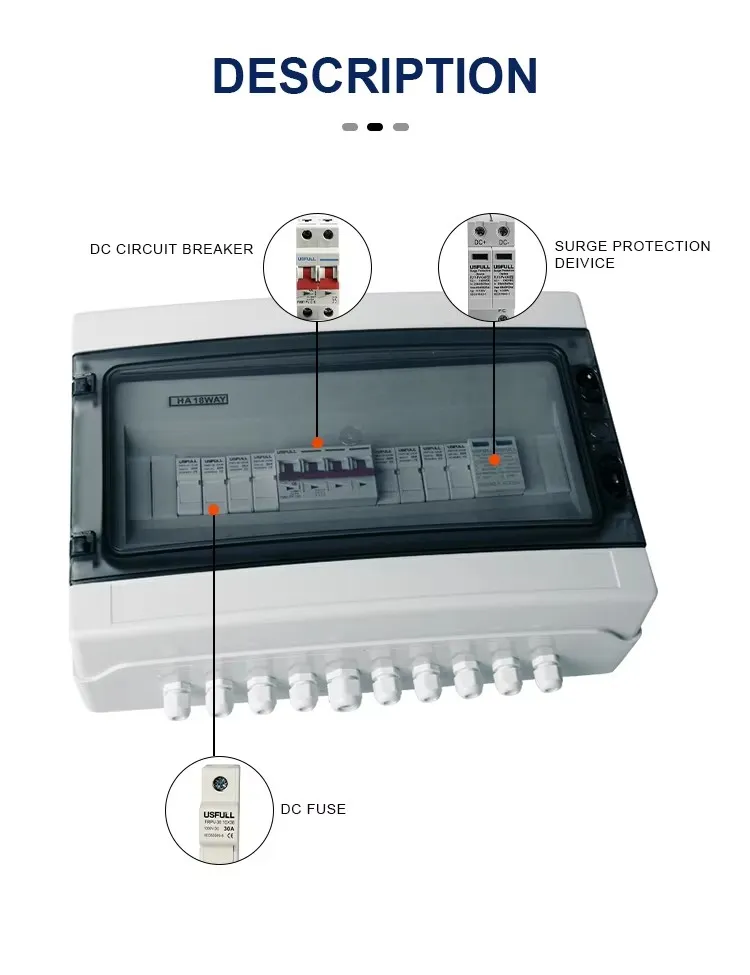

Durable and Waterproof Design: Our Factory Price PV Combiner Box features an IP66 waterproof rating, ensuring it can withstand harsh outdoor conditions and provide reliable performance in solar energy stations.

Compliant with International Standards: This product meets CE and IEC standards, guaranteeing its quality and safety for use in solar system applications.

Wide Voltage Compatibility: With a voltage rating of 1000VDC, our PV Combiner Box is suitable for various solar panel configurations and can be easily integrated into your existing solar system.

Convenient Payment Options: We offer flexible payment methods, including T/T, PayPal, and Western Union, to accommodate your needs.

Worry-Free Warranty: Enjoy 12 months of warranty coverage, providing you with peace of mind and protection against any defects or issues with the product.

Categories:

Combiner Box


Model FUCB-MDP2/1N FUCB-MDP3/1N FUCB-MDP4/1N
Number of DC Inputs 2 3 4
Material of Box ABS
Max. Rated Voltage DC 1000V
DC Fuse 15A (Recommend 15A, support other ampere)
Fuse Holder 1000V DC 32A
DC Breaker 32A 50A 63A
Surge Protection DC Type II, In =20kA, Imax=40kA, Ucpv=1000V DC
Over-Voltage Category Cat III
Connection Type DC Input PG09/PV Connector, IP68
Input Cable Size for Negative and Positive Φ4-8mm
Number of DC Outputs 1 (Support customize for output number)
Connection Type DC Output PG13.5
Ambient Temperature Range/Humidity Temperature: -20℃~ +60℃
Humidity: 0-99%
Altitude ≤ 2000m Derating for above 2000m
Installation Wall mounting/ Padlockable latch
Optional Customized Service:
1. Support PV connector
2. Support drawing customization
3. Support installation of DC isolator switch
4. Support 2 input 2 output, 4 input 2 output, etc .
